Scaling up

Input data

The optimal cluster configuration depends on the input dataset. Datasets consist of files, and the number of files can vary. Files consist of events, and the number of events can vary.

In practical terms, the input to the parallel processing steps is a list of files to be processed. We do not consider directing events from one file to different processing steps. It could be done, but would require a filtering list as an input to the processing.

In an ideal case, the parallel steps should take the same amount of time to complete. That would guarantee that the resources are used efficiently so that no idle nodes - for which we still pay for - remain while the longer jobs still continue. However, this is usually not the case because

• input files are not equal in size
• processing time per events can vary.

The best approach remains to have the same amount of files in each parallel step. Eventually, the files could be sorted according to their size and their share to the nodes could be optimized.

Cluster and job configuration

vCPUs, memory and disk

In earlier investigations on Google Cloud Platform, kubectl top node and kubectl top pods were used to evaluate the resources needs for the processing - the most demanding step in the workflow chain. These earlier estimates were used.

    spec:
      containers:
      - args:
        - --cert-dir=/tmp
        - --secure-port=10250
        - --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
        - --kubelet-use-node-status-port
        - --metric-resolution=15s
        - --kubelet-insecure-tls

kubectl apply -f components.yaml

Without constraints (i.e. other parallel tasks running), the processing jobs take 80% of the available CPU, and require up to 1.8 GB of memory. However, choosing nodes with 4 vCPUs 8 GB memory resulted jobs failing because the node was low on resources. Therefore, nodes with larger memory (16 GB) were chosen.

The output is written to the local disk on the node. For the type of processing in this example - adding information to the usual NanoAOD format - the output size for processing a single MiniAOD file is around 2 GB. The node disk needs to be large enough to accommodate the outputs of all jobs on the node before they are moved to the object storage at the end of the job. It also needs to fit the CMSSW container image which is around 30 GB (uncompressed). Therefore, of the available options, the disk size of 80 GB was chosen. A 50 GB disk could have been large enough, if each job processes a single output file. However, the difference in cost is small, around 10%.

Number of nodes and job configuration

In the example case, we have used the MuonEG MiniAOD dataset with 353 input files. For that number of files, we deployed a cluster with 45 nodes 4-vCPU nodes, providing a total of 180 vCPUs.

We first make sure that the large CMSSW image is present on each node. This is done in a prepull step with an artificial resource request requiring more than half of the available vCPUs, making sure that only one pull happens per node. In this cluster configuration, we require 3 CPUs as the nodes have 4 vCPUs

      resources:
        requests:
          cpu:  "3"

Note that this value needs to be changed is the node has more (or less) than 4 vCPUs.

For the processing, we define a workflow with 353 jobs, and set the resource request so that one job runs on each vCPU at a time. The relevant part of the workflow definition is the resource request of the final processing step:

      resources:
        requests:
          cpu: "800m"

For the processing of the full dataset, this results to running a first set of 180 jobs parallel, and when they complete, the remaining 173 will start. We will have a close to full occupation of the cluster.

Autoscaling

Autoscaling is a feature that automatically removes idle nodes from the cluster. It can reduce cost, as the total cost depends on the uptime of nodes in the cluster. We are not using it, because it would delete the nodes that remain idle while waiting for the prepull step to finish on all nodes. Once the processing step starts, the cluster would automatically scale up to the number of defined nodes. However, in our case, we do not want that happen as the prepulled image on each node is used in the processing step.

Automating

The optimal cluster configuration depends on the number of files in the dataset. One could envisage a tool that

• inspects the dataset(s) to be processed
• creates the cluster with optimal numbers of nodes
• inserts the relevant parameters - the number nodes for the prepull and the number of jobs for the processing - to the workflow definition.

This has not been implemented in this tutorial example to keep it simple.

Costs

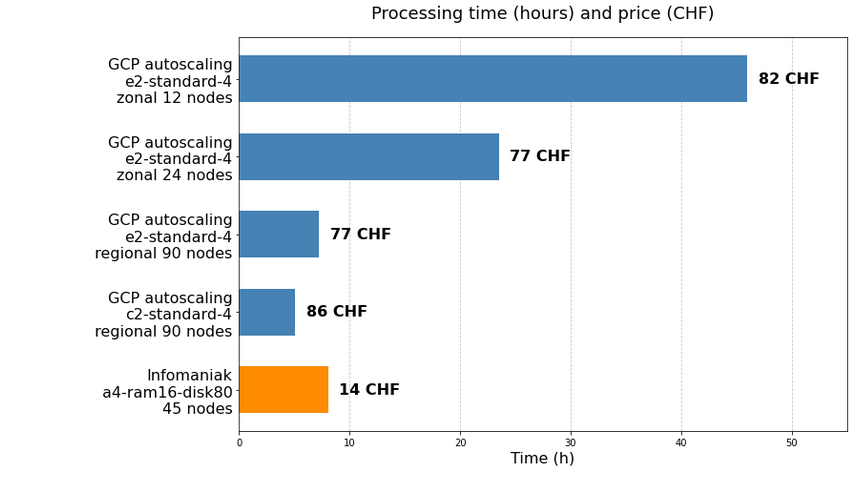

The processing over the full example dataset took 8 hours, including setup. The resulting cost of the cluster was 14 CHF. The graph below shows comparison with the earlier work using different cluster configurations and node types on Google Cloud Platform (GCP).
